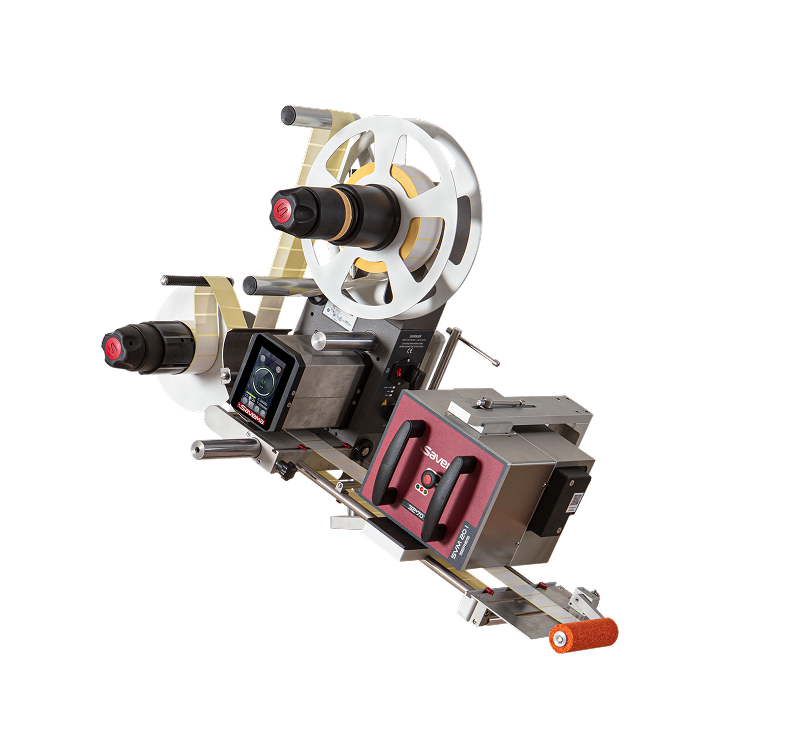

Savema Label Applicator
A precision labeling system featuring a high-resolution touchscreen and advanced logic to detect missing or broken labels, designed for seamless integration into high-speed production lines.
Models
- Maximum Label Width: 110mm
- Maximum Label Roll Diameter: 30cm
- Maximum Label Speed: 60 meter/min
- Power Supply: 100-240V 5.8A 50-60Hz 500W
- Weight: 25kg
- Type: Otomatik
- Blower Mechanism (optional)
- Transparent Label Sensor (optional)
| Maximum Label Width | 110mm |
|---|---|
| Maximum Label Roll Diameter | 30cm |
| Maximum Label Speed | 60 meters/min |
| Power Supply | 100-240V AC, 500W |
| Weight | 25Kg |
| Type | Otomatik |
| Blower Mechanism | Optional |
| Transparent Label Sensor | Optional |
| I/O Interface | Label Feeding Signal Input / Fault Signal Output, Busy Signal Output |
| Interface (optional) | Modbus RTU, Modbus TCP, Ethernet TCP/IP, Can-Open, Start / Stop Signal |
| Connection Types: | Relay (NPN-PNP) – Photocell (NPN-PNP) |
| Operation: | 4.3” / 272x480 pixel resolution touchscreen, user menu, setting menu, user start/stop, user administration, manual label feed |
| Language: | Multi-Language System (TR, EN, IT, DE, RU, AR, FR, ES, CS, NL, CN, KO, PT, EL, FA) |
| Advanced Properties | Working with encoder or without encoder, printer can be connected (optional), blower mechanism can be connected (optional), transparent label sensor (optional), missing label error, label broken error, printer fault error |
- Maximum Label Width: 110mm
- Maximum Label Roll Diameter: 30cm
- Maximum Label Speed: 30 meter/min
- Power Supply: 100-240V 5.8A 50-60Hz 500W
- Weight: 25kg
- Type: Otomatik
- Blower Mechanism (optional)
- Transparent Label Sensor (optional)
| Maximum Label Width | 110mm |
|---|---|
| Maximum Label Roll Diameter: | 30cm |
| Maximum Label Speed | 30 meters/min |
| Power Supply | 100-240V 5.8 A 50-60 Hz, 500W |
| Weight | 25Kg |
| Type | Otomatik |
| Blower Mechanism | Optional |
| Transparent Label Sensor | Optional |
| I/O Interface | Label Feeding Signal Input / Fault Signal Output, Busy Signal Output |
| Interface (optional) | Modbus RTU, Modbus TCP, Ethernet TCP/IP, Can-Open, Start / Stop Signal |
| Connection Types | Relay (NPN-PNP) – Photocell (NPN-PNP) |
| Operation | 4.3” / 272x480 pixel resolution touchscreen, user menu, setting menu, user start/stop, user administration, manual label feed |
| Language | Multi-Language System (TR, EN, IT, DE, RU, AR, FR, ES, CS, NL, CN, KO, PT, EL, FA) |
| Advanced Properties | Working with encoder or without encoder, printer can be connected (optional), blower mechanism can be connected (optional), transparent label sensor (optional), missing label error, label broken error, printer fault error |
4.3" Color Touchscreen
- High-resolution menu for easy setup and multi-language administration.
Encoder Synchronization
- Can work with an encoder to match the label application speed perfectly with the conveyor speed.
Advanced Error Detection
- Built-in sensors detect "Missing Label on Roll," "Label Broken," and "Printer Fault."
Flexible Integration
- Optional modules for blow-out application (air-jet) and printer mounting (TTO/TIJ).
| Max Label Width | 160mm |
|---|---|
| Maximum Label Roll Diameter | 30cm |
| Maximum Label Speed | 45 meters/min |
| Power Supply | 100-240V 5.8 A 50-60 Hz, 500W |
| Weight | 35Kg |
| Type | Otomatik |
| Blower Mechanism | Optional |
| Transparent Label Sensor | Optional |
| I/O Interface | Label Feeding Signal Input / Fault Signal Output, Busy Signal Output |
| Interface (optional) | Modbus RTU, Modbus TCP, Ethernet TCP/IP, Can-Open, Start / Stop Signal |
| Connection Types | Relay (NPN-PNP) – Photocell (NPN-PNP) |
| Operation | 4.3” / 272x480 pixel resolution touchscreen, user menu, setting menu, user start/stop, user administration, manual label feed |
| Language | Multi-Language System (TR, EN, IT, DE, RU, AR, FR, ES, CS, NL, CN, KO, PT, EL, FA) |
| Advanced Properties | Working with encoder or without encoder, printer can be connected (optional), blower mechanism can be connected (optional), transparent label sensor (optional), missing label error, label broken error, printer fault error |
- Maximum Label Width: 240mm
- Maximum Label Roll Diameter: 30cm
- Maximum Label Speed: 30 meter/min
- Power Supply: 100-240V 5.8A 50-60Hz 500W
- Weight: 35kg
- Type: Otomatik
- Blower Mechanism (optional)
- Transparent Label Sensor (optional)
| Max Label Width | 240mm |
|---|---|
| Maximum Label Roll Diameter | 30cm |
| Maximum Label Speed | 30 meters/min |
| Power Supply | 100-240V 5.8 A 50-60 Hz, 500W |
| Weight | 35Kg |
| Type | Otomatik |
| Blower Mechanism | Optional |
| Transparent Label Sensor | Optional |
| I/O Interface | Label Feeding Signal Input / Fault Signal Output, Busy Signal Output |
| Interface (optional) | Modbus RTU, Modbus TCP, Ethernet TCP/IP, Can-Open, Start / Stop Signal |
| Connection Types | Relay (NPN-PNP) – Photocell (NPN-PNP) |
| Operation | 4.3” / 272x480 pixel resolution touchscreen, user menu, setting menu, user start/stop, user administration, manual label feed |
| Language | Multi-Language System (TR, EN, IT, DE, RU, AR, FR, ES, CS, NL, CN, KO, PT, EL, FA) |
| Advanced Properties | Working with encoder or without encoder, printer can be connected (optional), blower mechanism can be connected (optional), transparent label sensor (optional), missing label error, label broken error, printer fault error |
