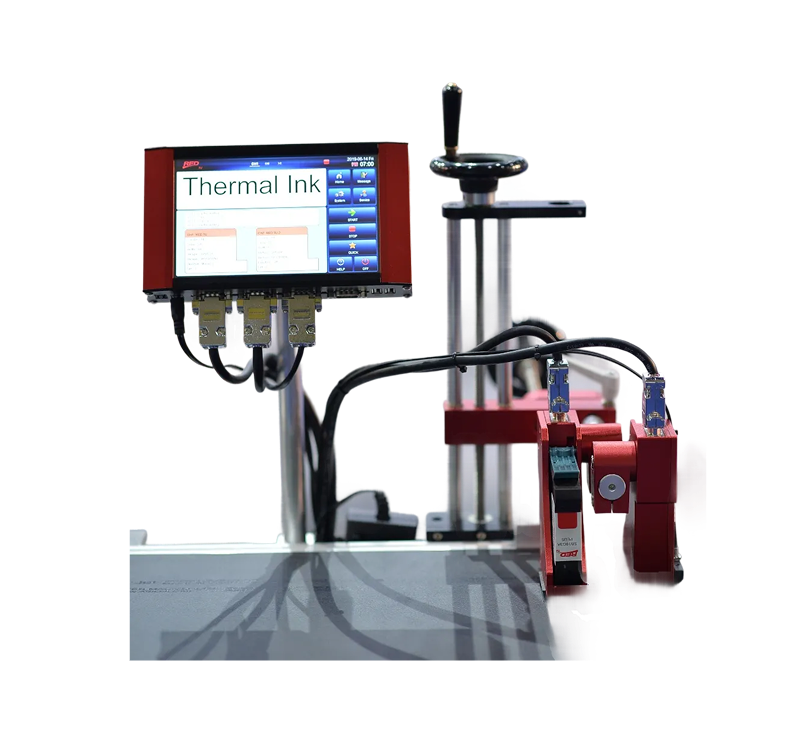

RED TIJ
A clean, high-resolution (600 DPI) alternative to CIJ, ideal for outer case coding and porous substrates.
Models
Ink Types
- Water-based (for porous materials like cardboard) and Solvent-based (for non-porous materials like plastic/glass).
Internal Storage
- Store up to 1,000+ messages/templates.
Sensors
- Built-in internal sensor; supports external NPN photocell.
| Print Head | Single-head integrated design. |
|---|---|
| Print Height | 1mm to 12.7mm. |
| Print Speed | Up to 60 meters/min (standard resolution). |
| Display | 4.3-inch or 5-inch color touchscreen (depending on specific sub-version). |
| Throw Distance | Recommended 1mm to 5mm for best quality. |
| Power Supply | 12.6V Lithium battery or 100-240V AC adapter. |
| Weight | Approximately 0.8kg - 1.2kg (highly portable/compact). |
Variable Data
- QR Codes, Data Matrix, Barcodes, Logos, Images.
Database Support
- Supports MS Excel, Access, SQL, and CSV files for high-speed variable printing.
Languages
- Supports over 40 languages (multi-language system)
| Print Head | Supports 1 to 4 print heads (expandable). |
|---|---|
| Print Height | Up to 12.7mm (per head); max height 50.8mm with 4 heads. |
| Print Speed | Up to 60 meters/min (at 300 DPI) or 30 meters/min (at 600 DPI). |
| Resolution | Adjustable from 50 DPI to 600 DPI. |
| Display | 7-inch industrial color touchscreen. |
| Operating System | Linux-based for high stability |
| Connectivity | Ethernet, USB 2.0, RS232, and I/O for external sensors/encoders |
| Housing | Full aluminum alloy (IP54 rated) |
